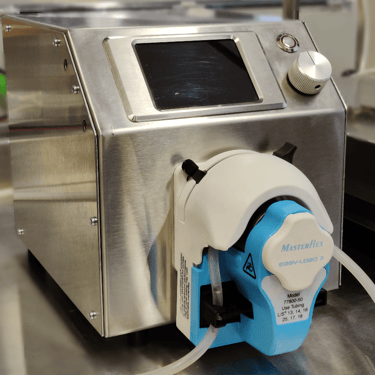

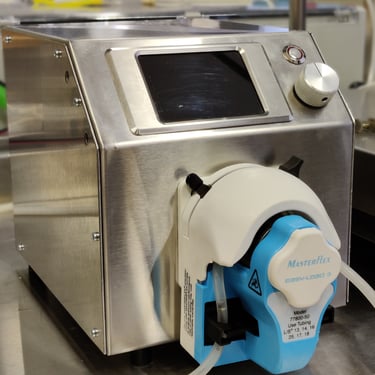

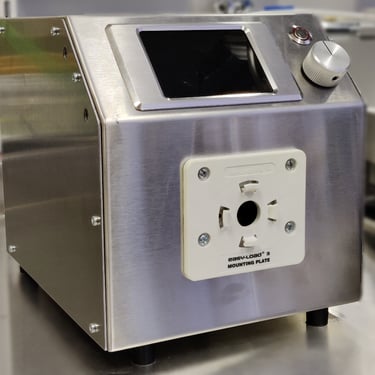

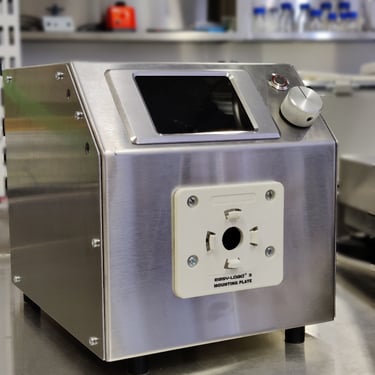

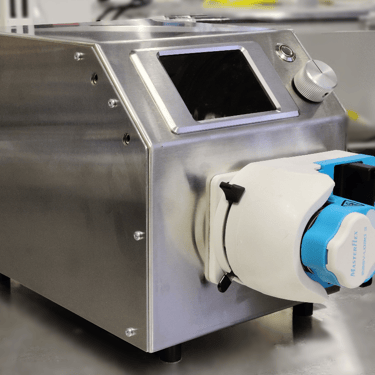

Peristaltic Pump

Main Characteristics

Speed: 0.1 - 600 RPM
Max. Continuous Torque: 1.27 Nm
Speed regulation: ±1 % F.S.

Screen

Color: RGB 65K
Size: 3.5 inches
Resolution: 480 x 320

Size

Depth: 200 mm
Width: 194 mm
Height: 200 mm
Weight: <6 kg

I/O

Power Supply: 220VAC
Scale Communication: D-SUB 9 PIN
Communication: 1x USB Type-B, 1x DSUB 9 PIN

Compatability

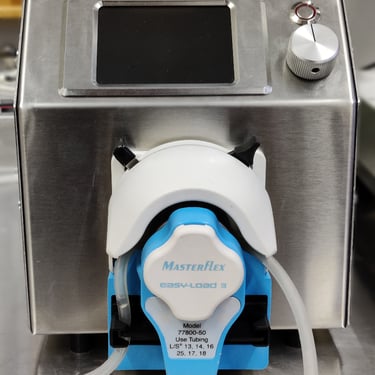

MasterFlex Easyload Pump Heads: Model 77800-50, Model 77800-60
Compatible tube sizes (inner diameter): 0.03 mm, 0.06 mm, 0.12 mm or L/S 13, 14 and 16
Maximum Continuous Pressure: 25 psi (1.7 bar)
Maximum Pressure: 40 psi (2.7 bar)

Pump Control Panel Software

Full Control

-Fully control the Peristaltic Pump and its different substrate feeding modes from any personal computer
-Monitor all information in one place, including the connected scales

Different Work Modes

-Manual pump control: manually set RPMs from any PC
-Dose control: select the number of grams to feed at the selected rate (RPM)
-Speed control: constant selected feeding rate in grams per hour

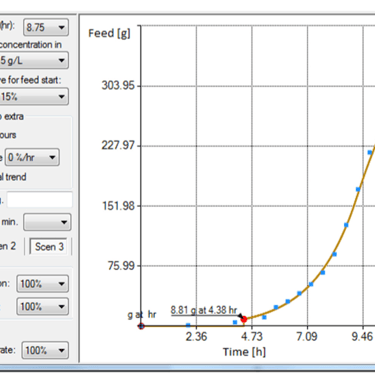

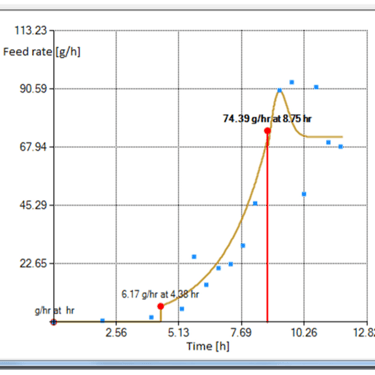

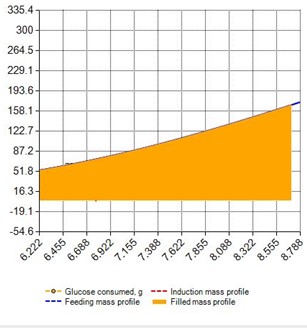

Feeding Profiles

-Create, save and upload feeding profiles
-Real-time tracking of the implemented feeding profile

Making It Easier

-No dosing speed calibration is required for the peristaltic pump device
-Failover recovery function: continue the feeding profile where it was left off
-Monitor and save all the feeding information for future analysis
